Front Or Rear Wheel Steering Type Container Forklift with Side Shift Capability

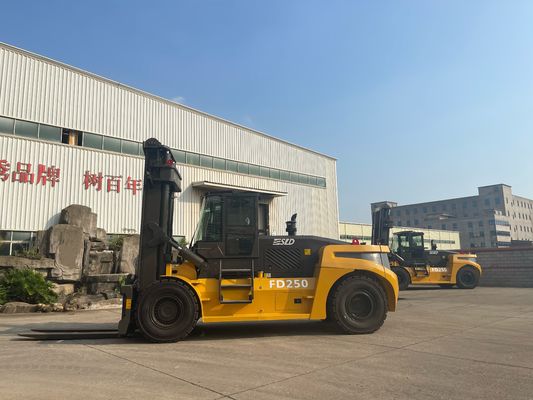

Gambar besar : Front Or Rear Wheel Steering Type Container Forklift with Side Shift Capability

Detail produk:

Place of Origin:	China
Nama merek:	SLD
Sertifikasi:	ISO, CE

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 unit
Harga:	dapat dinegosiasikan
Packaging Details:	40FR containers
Delivery Time:	30 working days
Payment Terms:	L/C, T/T
Supply Ability:	100 units per month

Kontak

Detil Deskripsi produk

Sudut miring:	45-90 derajat	Pusat beban:	600mm
Lampiran:	Garpu, cabang gulung, cabang ban	Warna:	Oranye merah, disesuaikan
Tinggi angkat tiang:	3000mm	Panjang garpu:	1800mm
Jaminan:	1-2 tahun	Beban dinilai:	15000kg
Menyoroti:	steering type container forklift , heavy lift forklift with side shift , rear wheel steering forklift

1. Who Needs This Forklift?

✔ Port & terminal yards – 40 ft container stacking
✔ Rail hubs – side-shift for precise wagon loading
✔ Logistics depots – narrow aisle block stacking
✔ Heavy-OEM – outdoor container unloading
✔ Rental fleets – one truck covers multiple sites

2. Core Advantages

2.1 Front or Rear Wheel Steering

Electro-hydraulic switch on dash (2 s)
Front = 25 km/h road travel
Rear = 3.8 m turning radius (one lane)
Crab = diagonal entry into rail wagons

2.2 Hydraulic Side-Shift ±150 mm

No lost load center
±2 mm accuracy for twist-lock alignment
Operates at any mast height

2.3 Container Package

4,500 mm lift (1-over-2 stacking)
ISO spreader hook points (20-40 ft)
LED container lights + rear camera
Anti-collision corners (rubber buffers)

2.4 Heavy-Duty Base

22,000 kg service weight = no extra ballast
25 % gradeability loaded
Solid pneumatic tires 14.00-24 PR24

5. Safety & Comfort

ROPS/FOPS cabin 74 dB(A)
Suspension seat with 3-point belt
360° LED stripe + blue safety light
Hill-hold & neutral-start interlock
Camera + radar optional

Technical Parameters:

Parameters:	Vehicle configuration			FD150
Performance	Rated load			15000
	Load center			600
	Mast tilt angle (front/rear)		º	6/12
	Overall dimensions	Length	mm	7200
		Width	mm	2550
		Height	mm	3460
		Mast lifting height	mm	3000
	Fork size (LWH)		mm	1800X200X90
	Min. turning radius		mm	5050
	Max. travel speed (with load)		Km/h	22
	Lifting speed (with load)		mm/s	240
	Gradeability (with load)		%	20
	Weight		Kg	17000
Tyre	Front			4X12.00-24/20PR
	Rear			2X12.00-20/18PR
	Wheel tread	Front	mm	1850
	Wheel tread	Rear	mm	2130
	Wheelbase		mm	3600
	Min. ground clearance		mm	270
Engine	Model			YC6J175-T302
	Rated power		KW	129
	Max. torque		N.m	710
